Metal Corrugated Trapezoidal Roof Sheet Roll Forming Machine

Model NO.: as your requests
Material Specification: Aluminum, Alu-Zinc, Galvanized and Pre-Painted Gal
Thickness: 0.3 mm to 0.7mm.
Main Motor Power: 4 Kw.
Hydraulic Station Power: 3 Kw.
Feeding Width: 914/1000/1200mm.
Yield Stress: 235MPa (33ksi) ~ 345MPa (50ksi).
Roll Forming Speed: 12 M/Minute.
Voltage: as Per Customer′s Request.
Numbers of Stands: 18 Stands/Stations/Pairs.
Type of Cutting: Roll-Formed and Length-Set Profile Cutting.
Trademark: WILLING INT′L
Transport Package: Wooden Box and Container
Specification: ISO9001, CE Standard
Origin: China Pr
HS Code: 8455221000
High quality  steel  roofing roll forming machine
steel roofing roll former
steel roll forming machine

Metal Corrugated Trapezoidal Roof Sheet Roll Forming Machine
Metal Corrugated Trapezoidal Roof Sheet Roll Forming Machine
General Description:
       WLFM series roll forming machine consists of  uncoiler and its base, infeed guide, fixed position driven forming stations, cutting equipment, hydraulic station, PLC control console, and unload product run out table.
         Our company has hundreds of profile models for this series roll forming machine, such as WLFR25-248-992, WLFR50-250-1000, WLFR18-76-998 and so on. we can design different kinds of profile and fittings for machine, as per customers' requirements.

1. Components for steel roofing roll forming machine:

The roll forming machine consists of manual uncoiler, infeed guide, fixed position driven forming stations, cutting equipment, hydraulic station, PLC control console, and manual unload product run out table.
Metal Corrugated Trapezoidal Roof Sheet Roll Forming Machine
.2. Technical Parameters:

Material specification
Aluminum, alu-zinc, galvanized and pre-painted galvanized steel.

0.3 mm to 0.7mm.

Main motor power
4 kw.

Hydraulic station power
3 kw.

Feeding width

Cover width
WLFM 18-76-760/836/988 is 760/836/988mm respectively.

Yield stress
235Mpa (33KSI) ~ 345Mpa (50KSI).

Roll forming Speed
12 m/minute.

Cutting Tolerance
+/-2.5mm(length≤5000mm); +/-3.0mm(5000mm<length≤10000mm).

Manual Uncoiler
Max. Capacity: 5000kgs.

Coil inner diameter

As per customer's request.

Numbers of stands
18 stands/stations/pairs.

Type of cutting
Roll-formed and length-set profile cutting.

3. Material of Main Equipment:

Roller Material
High grade S45C forged steel, coated with hard chrome.

Active Shaft Material
High grade S45C carbon wrought steel, diameter 76mm.

Electric Elements
PLC control console, touch screen and transducer, from Siemens, Germany.
Other elements, from Schneider Electric, Germany.

Cutter Blades
Cr12MoV steel with quenched treatment, hardness HRC58~61,
wear-resistance, good steel structure, long life.

4. Process Sketch:
Uncoiling the sheet →Infeed guiding →Roll forming →Measure length →Cutting the panel →Panels to the supporter (option: automatic stacker).

5.Standard Equipment of Machine:

   Manual Uncoiler                1set
   Infeed Guide                      1set
   Roll Forming Station          1set
   Post-cut Equipment           1set
   Hydraulic Station                1pc
   PLC Control Console         1pc
   Product Support Table       2pcs

6. Series Design of Product

Metal Corrugated Trapezoidal Roof Sheet Roll Forming Machine

Metal Corrugated Trapezoidal Roof Sheet Roll Forming Machine
Our services:

1.  Professional engineers are available to be sent to the customers' factory to install and debug the machines and train the staff how to operate and maintain the machines.

2.  We can design different kinds of profiles and fittings for machine,  as per customer's requirements. You can send me the profile drawing and we will design the machine for you.

3.  Every process will be checked by responsible QC which insures every product's quality.

4.  Professional packing teams which keep every packing safely.
(1) Rollers are put on anti-rust oil and packed by bubble wraps; some other electric parts are packed by bubble wraps as well.
The oil hose and electric wires ae marked, and easy to be connected when used;
(3)In container loading, sea-worthy, well fixed by wire rope, wooden block and nails.

5.  One-year warranty will be assured for all our machines. Moreover, We promise to provide permanent technical support and after-sales service with our customers.

6.  We warmly welcome you to visit our factory for more detailed information, inspecting our machines and we will pick you up at HangZhou Railway station.


1.  Q: Are you manufacture or trrading company?
     A:We are manufacturer & exporter who signed in 2004, and our boss has many years experiences in machinery.

2.  Q: Why should I choose you?
     A:We are professional manufacture company that could provide the best products for the best price, high quality of services, and credible quality assurance.

3.  Q: How does your factory conduct Quality Control and Inspection?
     A: We are quite proud of our quality control procedure. It's comply with ISO quality system to control produce from the raw materials received to finishing warehousing. Any imperfect articles are rejected by our quality control.

4.  Q: How many kinds of products do you produce?
     A: We have produced different kinds of Steel Roof Tile Roll Forming Machine, Corrugated Steel Sheet Roll Forming Machine, C/Z Purlin Roll Forming Machine, Steel Deck Roll Forming Machine,  Slitting Line, Cut to Length Line, Press Brake, Shearing Machine, PPGI ,Gi ,PPGL ,Gl, Aluminum Coil. And we also can provide its finished products.

5.   Q: Where is your factory located? How can I visit there?
      A: Our factory is located in TongXiang, ZheJiang province. We could pick you up from HangZhou East Railway Station or TongXiang   Railway Station when you come.
   Please feel free to contact me for more up-date information and any queries you have. Best quality machines and services will be provided for you.

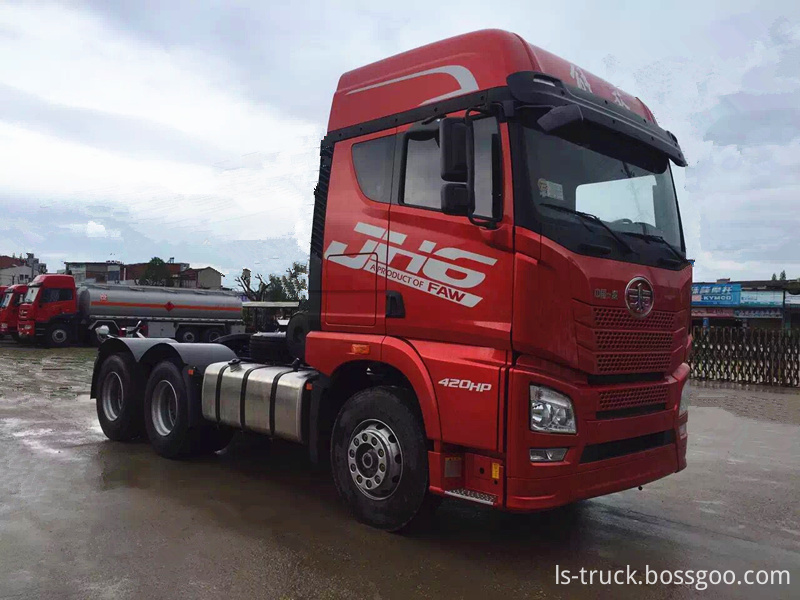

Truck Tractor is used to tow trailers which has two types: semi trailer and full trailer.
