Screw air compressor installation precautions

Posted on

The air compressor is installed on a firm ground and the equipment foundation is cast in C20 concrete. Two axial fans are installed at the 016m elevation of each air compressor inlet grille of the air compressor plant. The air flow rate of the air intake grille does not exceed 015m/s, and the design of the intake axial fan is designed. The ventilation is consistent with the air volume of the compressor fan, ensuring the smoothness of the ventilation system.
Screw air compressor installation precautions
In order to ensure that the pressure drop of the air in the cooling air duct does not exceed 30Pa, it is necessary to ensure that the cross-sectional area of ​​the exhaust duct from the outlet of the air compressor is 2 to 3 times the cross-sectional area of ​​the top of the air compressor. And this ventilation duct is not necked. For other models of screw air compressors, such as the pressure drop of the air in the cooling air duct exceeds 30Pa, a ventilation fan should be installed at the outlet of the cooling air duct to ensure that the compressor outlet temperature is controlled within the normal range.
According to the air supply requirements of the device, the design loading pressure is 612 Bar and the load shedding pressure is 8 Bar. From the time of commissioning to the current operating conditions, this setting can ensure the normal operation of the device, especially to meet the instrument wind requirements of the cryogenic device.
The temperature of the compressed air before passing through the aftercooler should be between 75 and 95"C. When the temperature of the compressor is too low, the oil and gas can cause condensation of oil and gas due to low temperature. The water content affects the lubrication effect. Seriously, the inner wall of the cylinder will be rotted; improper cooling and insufficient cooling will cause the El temperature to exceed 95 °C, which will accelerate the oxidation of the air compressor oil and even cause accidents. The soundproof cover is operated in the air compressor. Not only does it have the effect of eliminating noise, but also because of its special structural form, it is more conducive to ventilation and heat dissipation. When the air compressor is running, the soundproof cover is closed, and the air inlet of the cooling fan can be reserved from the lower part of the soundproof cover. Into, these vents face the air compressor main engine, motor, air compressor oil gas drum and other parts, can effectively reduce the temperature of the corresponding position, improve the running stability of the motor. Therefore, the soundproof cover should not be opened during operation.

INTRODUCTION:

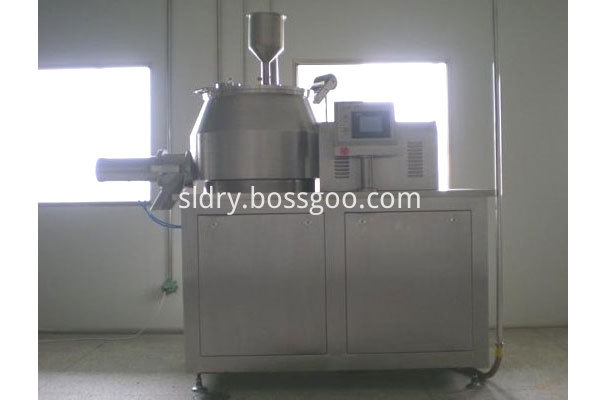

High Speed Mixing Granulator is a highly versatile machine suitable for dry mixing and wet granulation in the same bowl and in short time cycle. Rapid Mixer Granulator based for chemical and pharma industry. The complete operation is done within 10-30 minutes. The entire operation is performed in a closed dust free environment and the complete operation is automatic, including the discharge. The main assembly consists of a main Rapid Mixer Granulator mixing bowl made out of S.S. 316 quality, highly polished to give a mirror non-stick finish. The bowl is provided with two impellers, the main mixing impeller is mounted vertically with a horizontal rotation and the chopper blade is mounted on the side and rotates in the vertical axis. The main mixing assembly is provided with four blades, two for mixing and two for pushing the material upwards. The complete assembly is mounted on a suitable bearing housing provided beneath the bowl with specially designed seal and air purging arrangement. The complete assembly is coupled to a suitable gear box and motor through a belt assembly. Rapid Mixer Granulator mixing blade is provided with a dual speed motor for two sets of mixing RPMs and can optionally be provided with VFD for variable frequency. Rapid Mixer Granulator designed to achieve excellent fast Drying Machine at the low price with high productivity The chopper blade is a high speed blade with provided with specially designed blades to break the lumps into smaller granules with a short cycle time. The assembly is provided with a suitable bearing housing directly coupled to a suitable motor. The chopper rotation as a standard is at high speed can optionally be provided with VFD for speed variation. The top of the bowl is a dish-end provided with mechanically balanced loads for assisting in opening and closing the top lid. It is provided with standard parts for charging, view and air vent parts. The top can optionally be provided with pneumatic lifting arrangement in place of the mechanical loads. The discharge is provided with a pneumatically operated valve for complete and automatic discharge at the end of the cycle. The valve is provided with suitable 'O' rings for leak proof operation. The complete structure is mounted on a sturdy platform duty cladded with S.S. Dimpled sheets, provided with a stair case with railings. The sides of the platform are cladded with S.S. 304 sheets and mirror polished as per GMP standards. An electrical panel of S.S. With the contactors, relays. Timers on -off push buttons for the main motor, on-off push button for the chopper motor, pneumatic open – close for the discharge valve etc. on the platform for ease in operation. The Rapid Mixer Granulator machine can optionally be provided PLC for fully automatic operation and data logging.

High Speed Mixing Granulator
